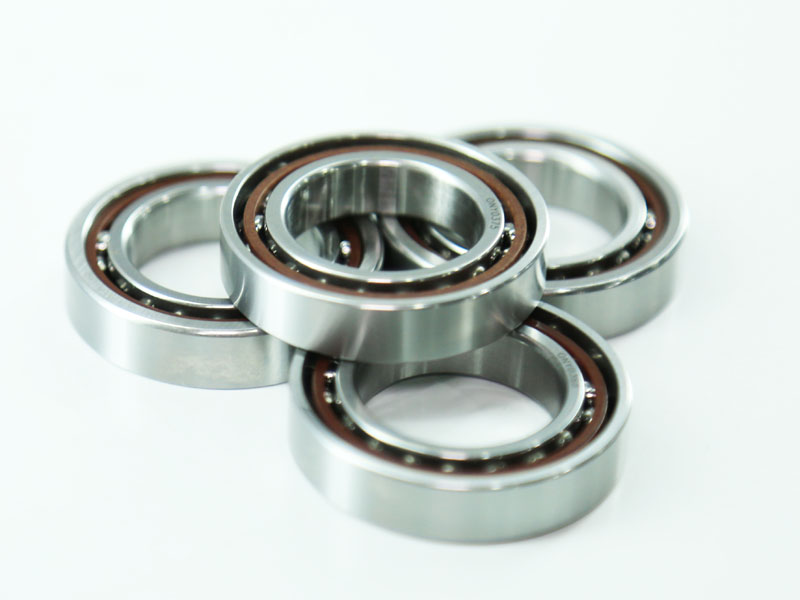

专注于P4S、P2级高速精密
角接触球轴承研发、生产、销售

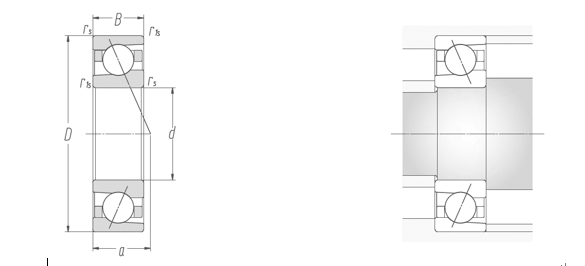

da

Da

ra

d

D

B

rsmin

a

h12

H12

max

Ca

Coa

脂

油

Kg

mm

≈

mm

KN

r/min

≈

760201TN1

12

32

10

0.60

24

17

27

0.6

11.6

12.5

17000

24000

0.04

760202TN1

15

35

11

0.6

27

20.5

30.0

0.6

12.5

15

15000

20000

0.05

760203TN1

17

40

12

0.60

31

23

34.5

0.6

16.6

20

13000

18000

0.07

760204TN1

20

47

14

1.0

36

27.5

39.5

1.0

19.3

25

12000

17000

0.13

760205TN1

25

52

15

1.00

41

32

45

1

22

30.5

11000

16000

0.16

760206TN1

30

62

16

1.0

48

39.5

52.5

1.0

26

39

9000

13000

0.24

760207TN1

35

72

17

1.10

55

46.5

60.5

1.1

30

50

8000

11000

0.34

760208TN1

40

80

18

1.1

62

53.5

69.5

1.1

37.5

64

7000

9500

0.44

760209TN1

45

85

19

1.10

66

57

73

1.1

38

68

6700

9000

0.5

760210TN1

50

90

20

1.1

71

63.0

79.0

1.1

39

75

6300

8500

0.57

760211TN1

55

100

21

1.50

78

69.5

85.5

1.5

40.5

81.5

6000

8000

0.75

760212TN1

60

110

22

1.5

86

77.0

96.0

1.5

56

112

5000

6700

0.96

760213TN1

65

120

23

1.50

92

84

103

1.5

57

122

4800

6300

1.2

760214TN1

70

125

24

1.5

96

87.0

108.0

1.5

65.5

137

4500

6000

1.32

760215TN1

75

130

25

1.50

101

93.5

114.5

1.5

67

150

4300

5600

1.45

760216TN1

80

140

26

2.0

108

100.0

122.0

2.0

76.57

175

4000

5300

1.76

760217TN1

85

150

28

2.00

116

107

131

2

86.5

196

3800

5000

2.19

760218TN1

90

160

30

2.0

123

113.5

138.5

2.0

98

224

3600

4800

2.69

760219TN1

95

170

32

2.10

131

119.5

146.5

2.1

110

255

3400

4500

3.26

760220TN1

100

180

34

2.1

138

125.5

154.5

2.1

122

285

3200

4300

3.91

760222TN1

110

200

38

2.10

152

139

171

2.1

146

355

2800

3800

5.5

760224TN1

120

215

40

2.1

165

150.0

185.0

2.1

176

425

2600

3600

6.5

760226TN1

130

230

40

3.00

176

162.5

197

3

180

455

2400

3400

7.4
